Topstreet Performance
Mini Digital 6AL Ignition Power Control Box With Rev Limiter Control
Mini Digital 6AL Ignition Power Control Box With Rev Limiter Control
Regular price
$184.95 USD
Regular price
Sale price
$184.95 USD
Unit price
/
per
Couldn't load pickup availability
Topstreet Performance Part Number : JM6939R

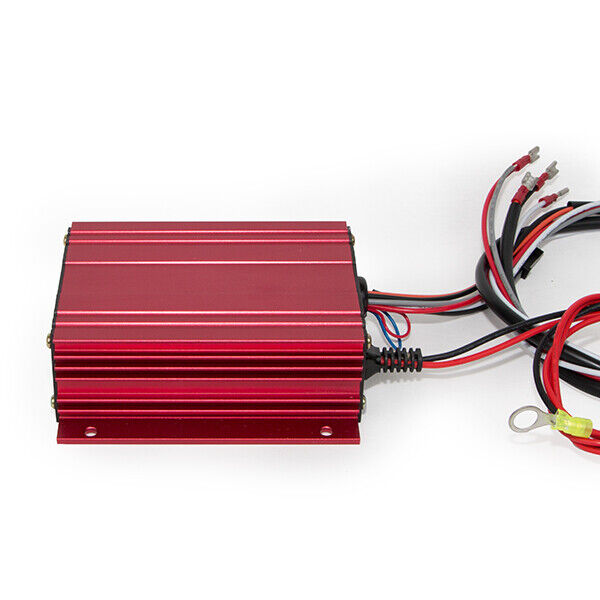

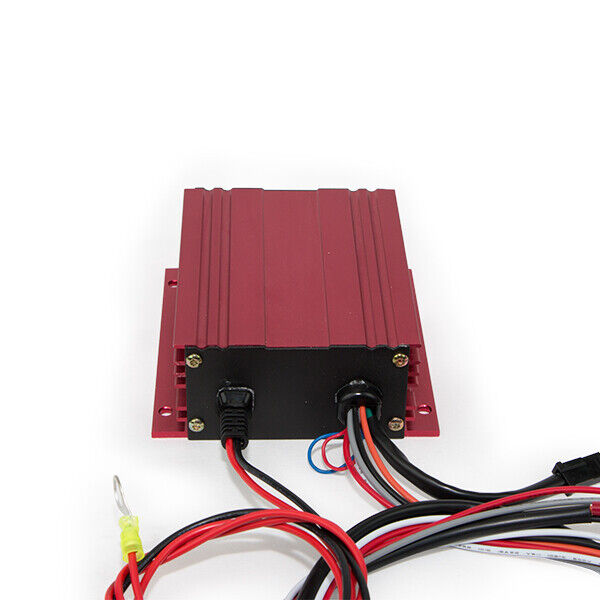

Mini Digital 6AL Power Control Box With Rev Control
Please contact us before ordering if you are not 100% sure of Fitment
TSP's digital 6AL style mini ignition control box uses the newest digital circuitry in the industry to provide maximum spark energy with less amp draw. The highly efficient electronics are housed inside an extra small aluminum case for easy mounting on the firewall or fender of any vehicle. With increased spark intensity this box will help any engine produce more power and increase throttle response. It's compatible with points and electronic ignitions, features an adjustable revolution limiter, and works with 4, 6, and 8-cylinder applications. It works best with TSP's Pro Series Pro Billet distributors and E-Core or Canister ignition coils.
Specifications
Spark | 95 mJ per Spark |
Primary Voltage | 435 Volts |
Secondary Voltage | 43,000 Volts |
Spark Duration | 20° Crankshaft Rotation |
Current Draw | 0.7 Amps per 1,000 RPM |
Dimensions | 5" x 5 1/2" x 2" |
