Holley Part Number 820111-1
Fits LS1/LS2/LS6 102mm Throttle
Body opening + Fuel Rail Kit Silver with Sniper logo -Low Profile Includes 850001 Fuel Rail Kit

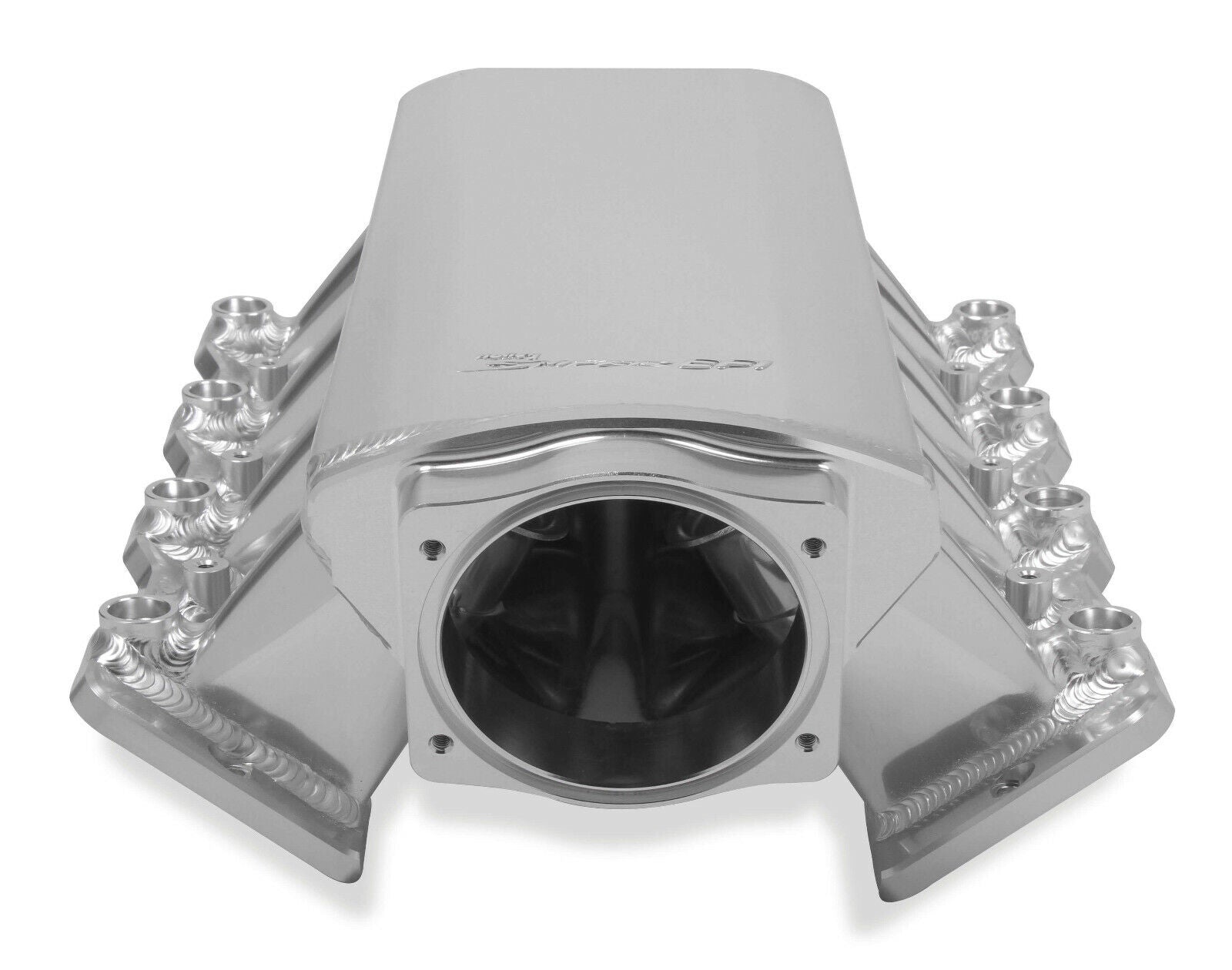

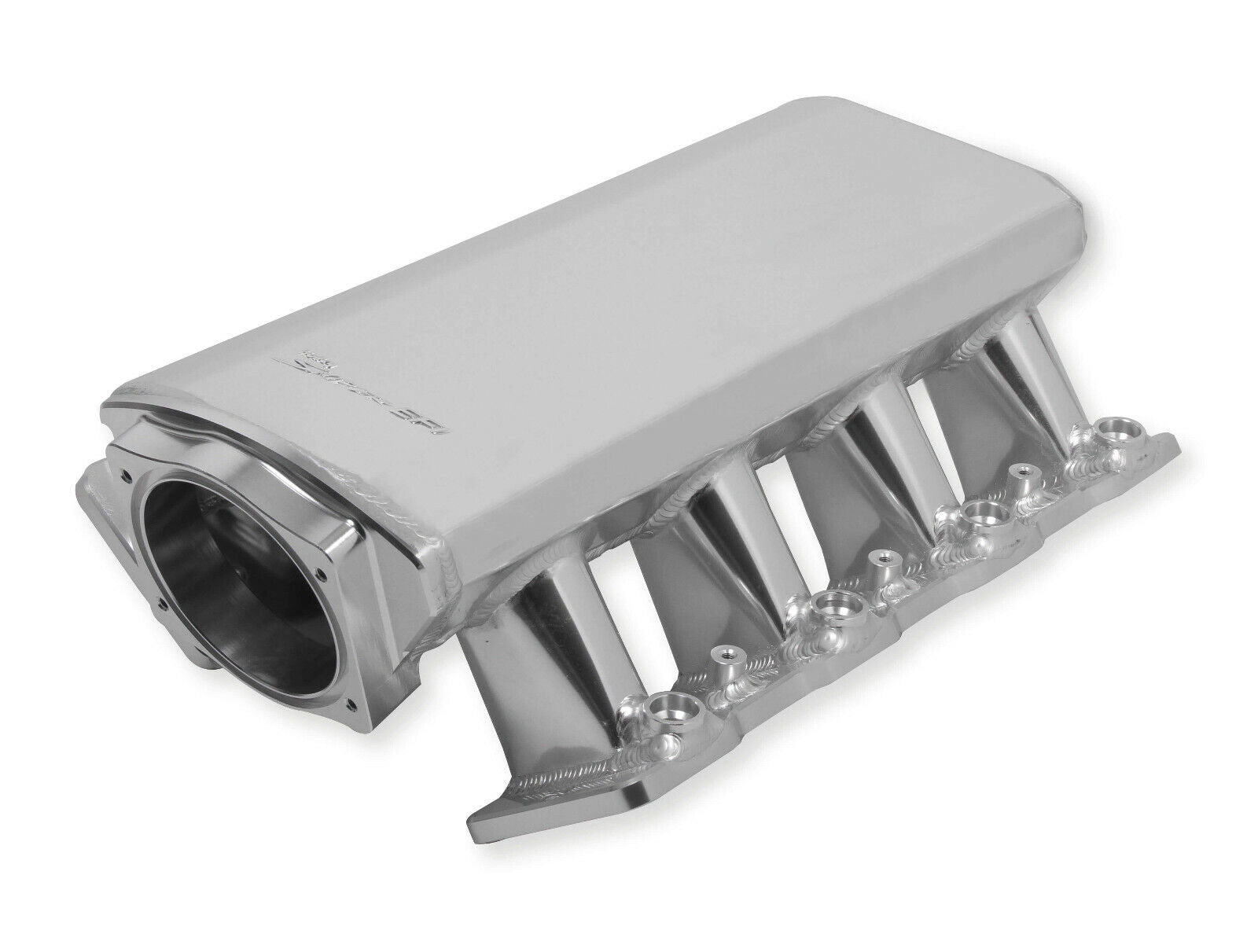

Holley Sniper Fabricated Manifolds continues to push the aftermarket by introducing Low Profile intakes for GM LS Engines. These Intakes are a good looking, perform well, and offer an extremely good value for a performance sheet metal style intake manifold for the very popular GM LS engine family.
Each manifold is ready to bolt on out of the box and are designed to accept our Sniper high-flow throttle bodies and include high flow fuel rail kit. This updated design was developed to allow the end user to fit under a stock hood.
Each manifold is precision fixtured and welded for a perfect fit and maximum structural integrity. Choice of Throttle Body opening sizes of 92mm & 102mm are available
Features:
- Low Profile Design (overall 1.875” shorter) allows fitment under stock hoods on Corvette, Camaro, Firebird, GTO, and others where hood clearance is at a minimum

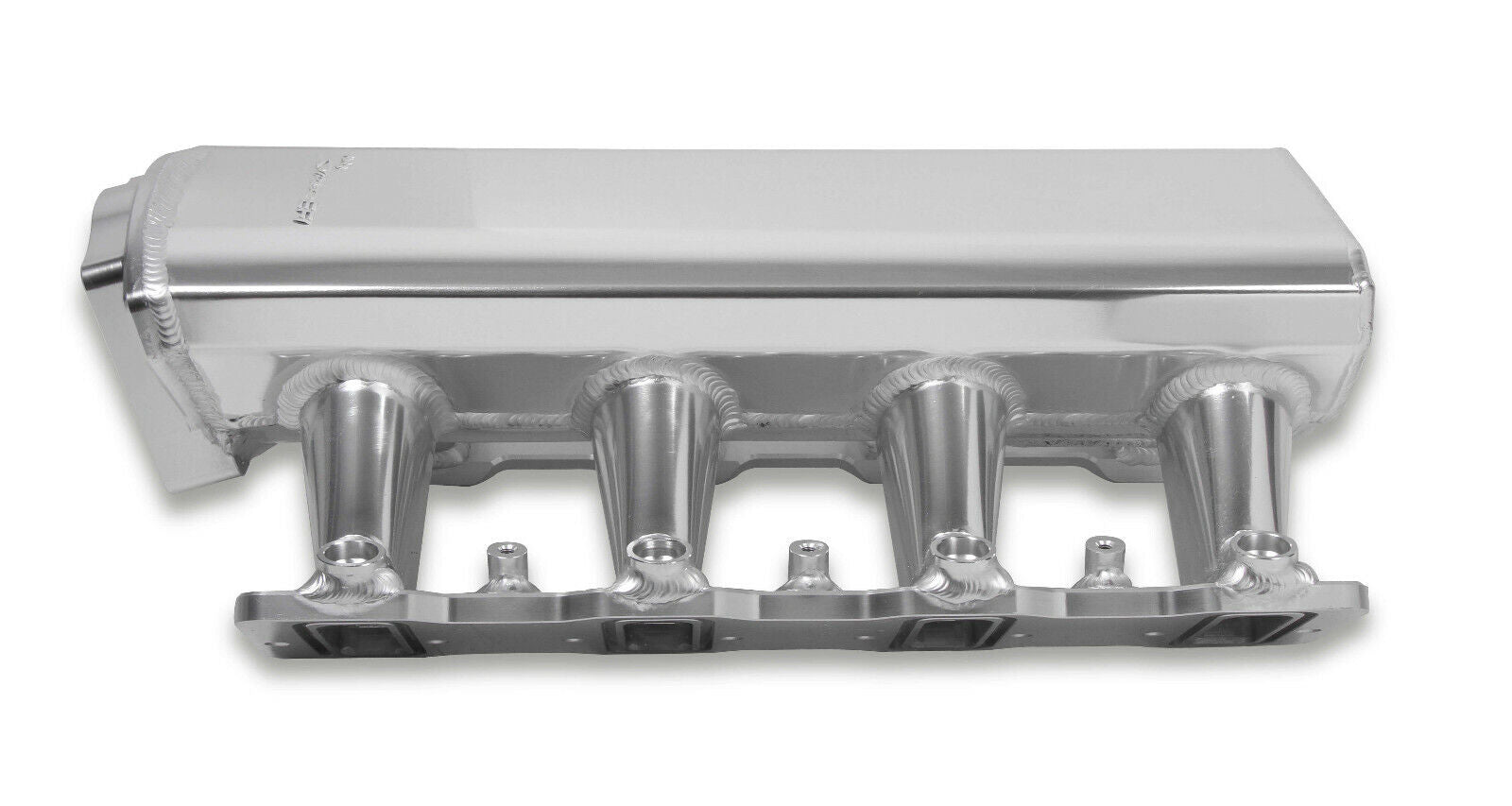

- Shortened runners allow for compact design. Overall plenum volume maintained by increasing the overall width of the plenum and increasing the overall dimensions of the runner.
- 3mm (1/8") thick T6061 Sheet Aluminum construction, strong and durable even under high horsepower and boosted conditions
- Available in 92mm and 102mm bore Throttle Body Openings
- 100% TIG welded

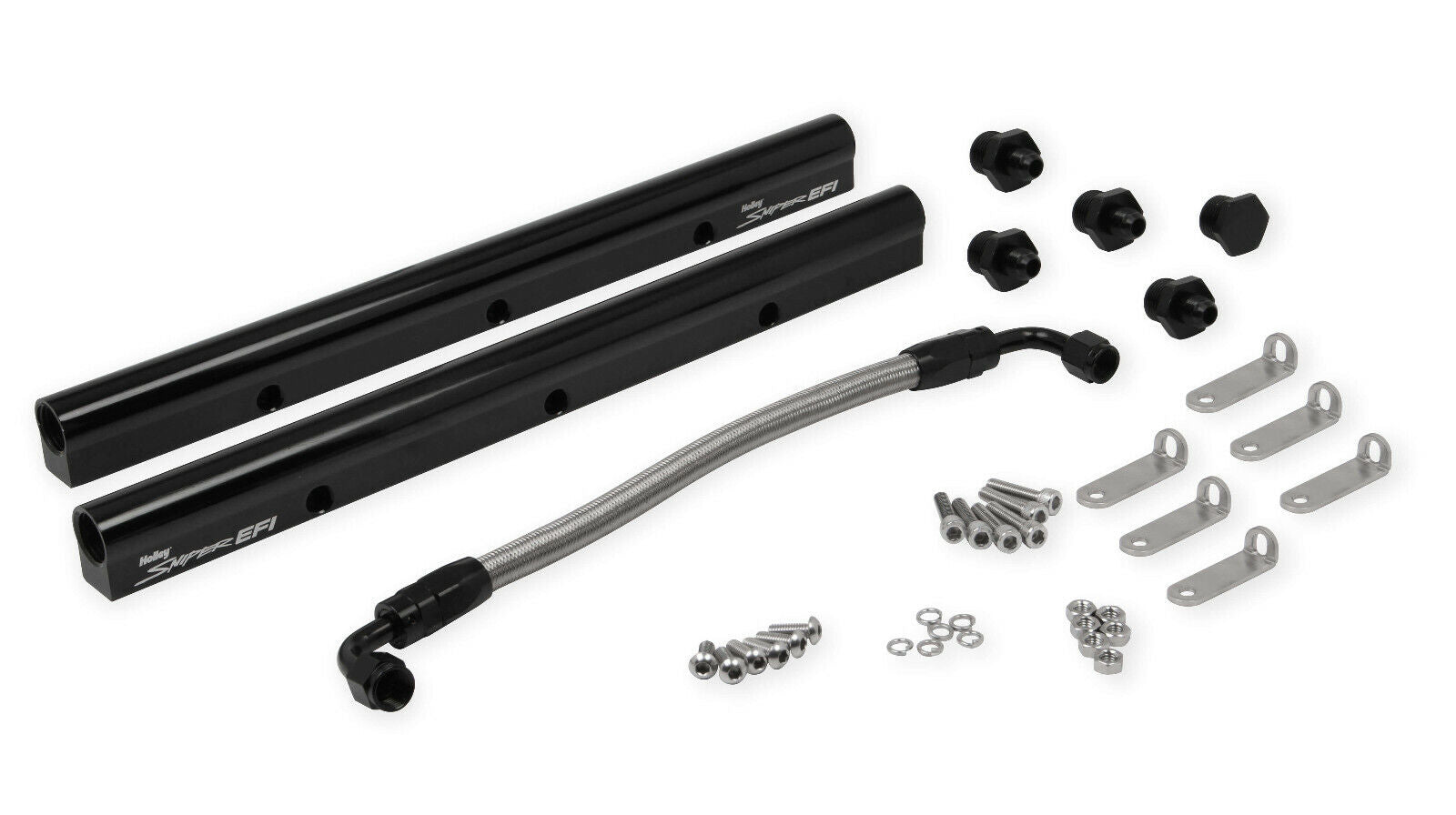

- Intakes include 3/8" Fuel rail kits with -8AN fittings and crossover braided line capable of supporting 750+ horsepower (laser engraved Sniper logo)
- Runner lengths with tapered top on EFI intakes designed to increase velocity and more evenly distribute airflow to all 8 cylinders

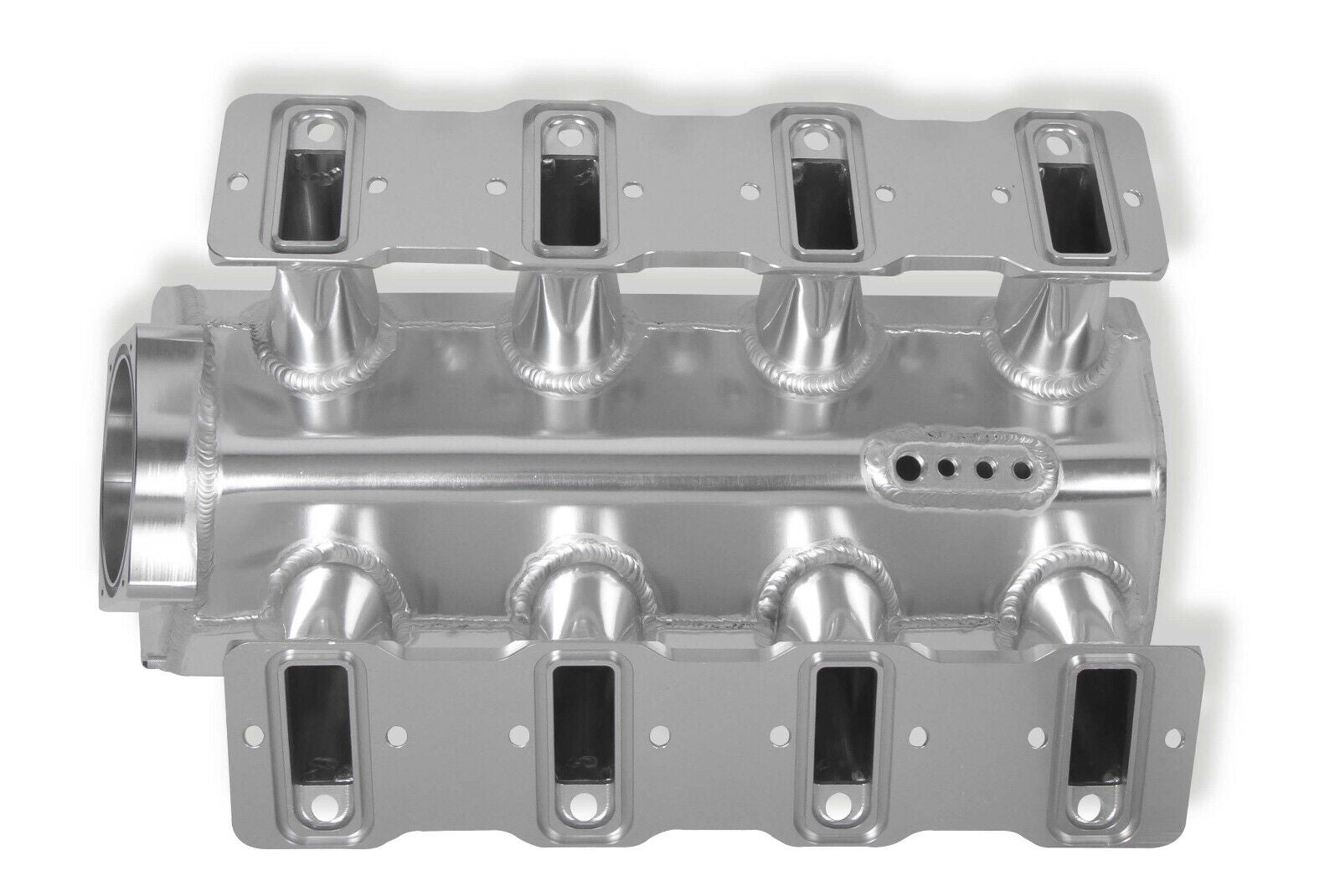

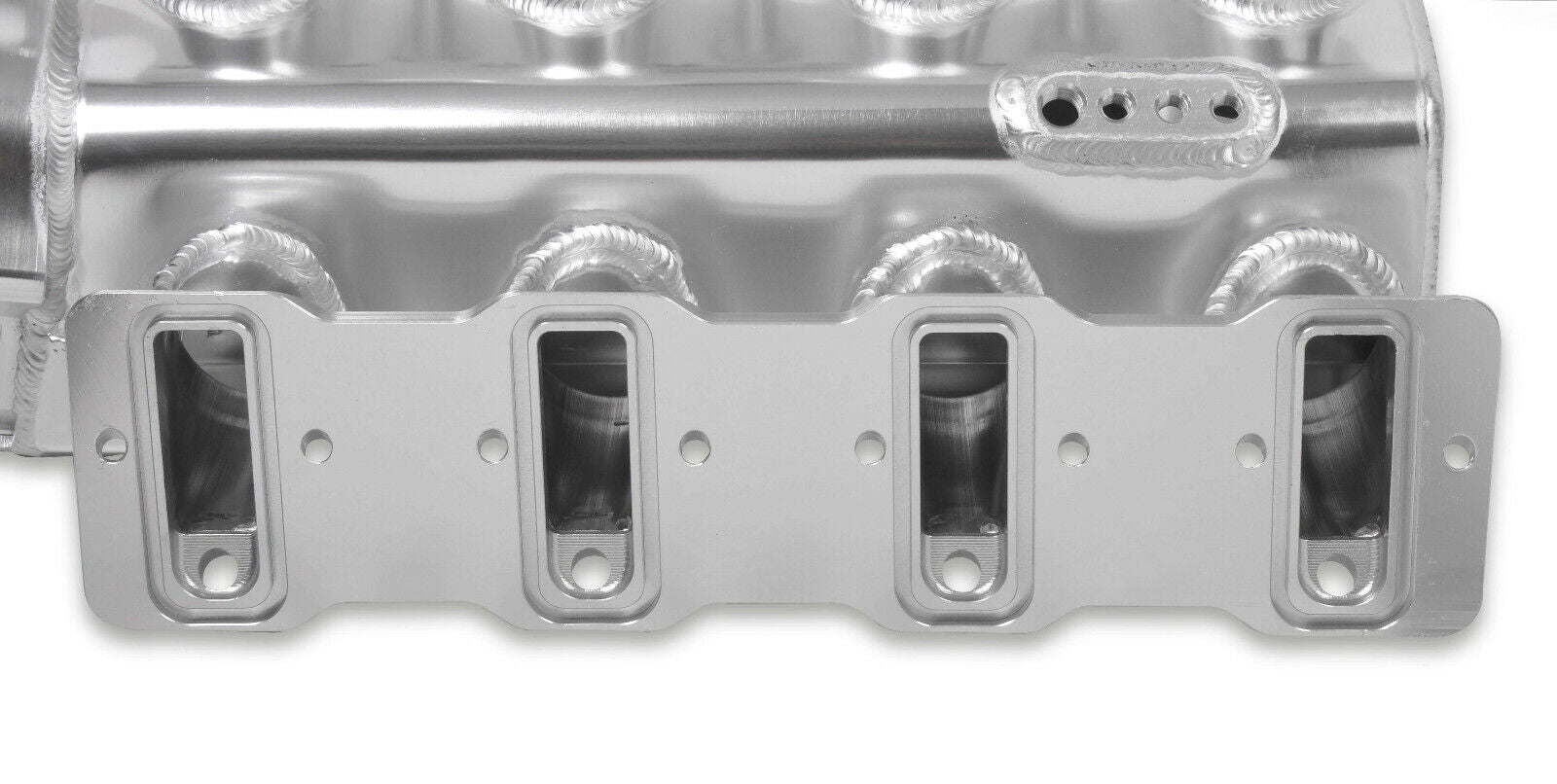

- Provision for MAP sensor located on rear of plenum
- Please contact before ordering if you are not 100% sure of fitment
| Brand |
Holley Sniper EFI |
| Color |
Silver |
| Construction |
Fabricated |
| Emission Code |
4 |
| Engine |
GM LS1/LS2/LS6 |
| Finish |
Silver |
| Front Height |
6.392 inch |
| Injector Style Provision |
LS1/LS6 EV1 Jetronic |
|
LS2 EV6 USCAR |
| Product Type |
Intake Manifold |
| Rear Height |
5.684 inch |
| RPM Power Band |
1800-6400 |
| Runner Length |
4.527" (115mm) |
| Style |
EFI |
| Throttle Bore |
102mm |
| Vacuum Ports |
(3) 1/8"-28BSPT & (1) 1/4"-19BSPT |
| Warranty |
Limited 90 Day |
| Part Number |
820111-1 |
