Fits GM LS Gen III and IV engines equipped with GM LS3/L92 cylinder heads
Please contact before purchasing , if you are not 100% sure of fitment

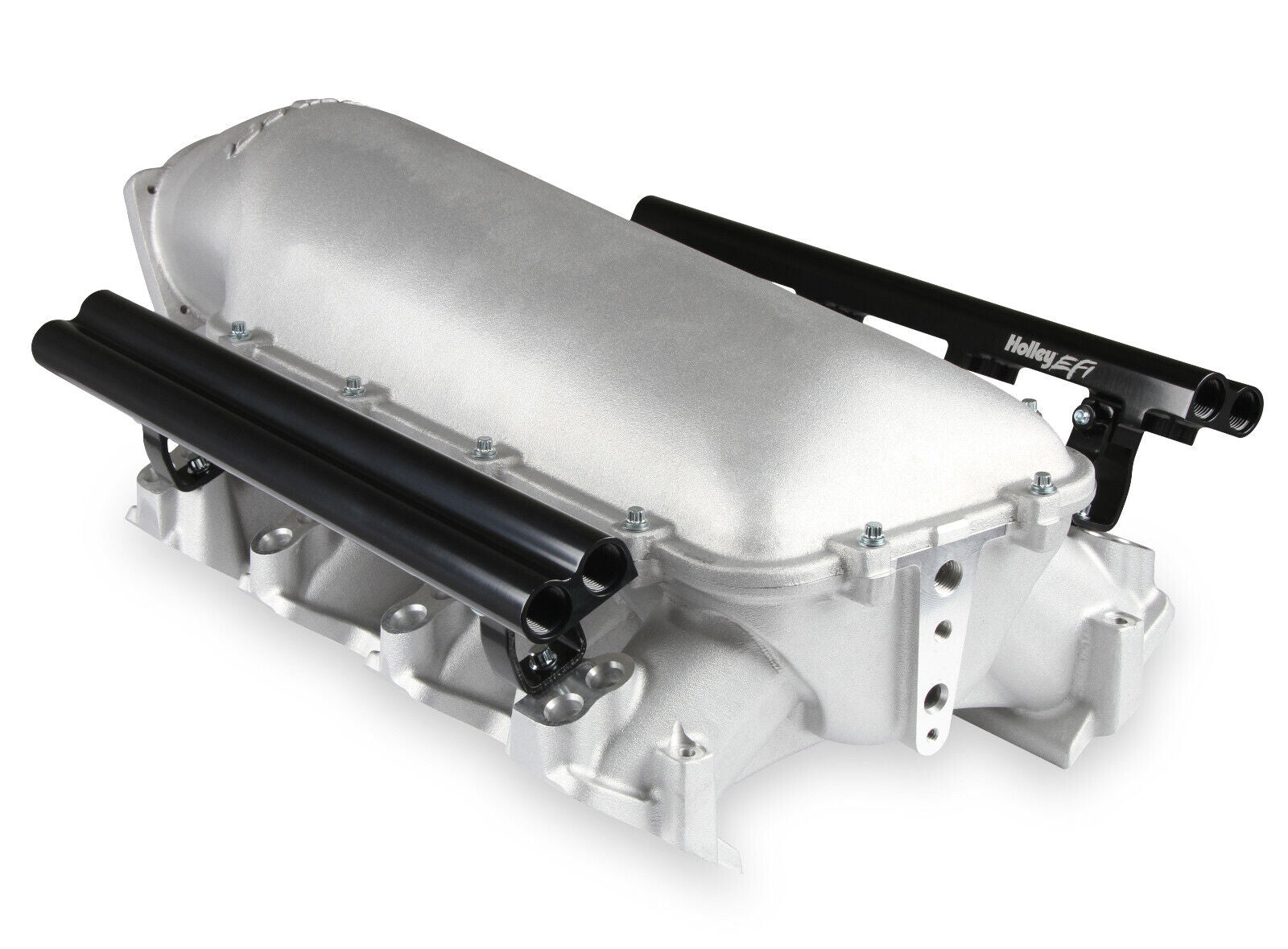

The LS3/L92 Lo-Ram manifolds base intake manifold is designed with a low height to aid
the packaging of a plenum mounted air-to-water intercooler for forced induction (supercharged or
turbocharged) engine applications with peak power at 7000-8000 rpm.
The Holley LS3 Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS3/L92 cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. The Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications and the 105 mm throttle body part number 112-581 or similar models. The base intake manifold is designed with a low height to aid the packaging of a plenum-mounted air-to-water intercooler. Additional manifold designs include both single and dual injector options. Available with both as-cast satin and black power-coat finishes. High volume fuel rails for eight and sixteen injector configurations. Mounting hardware included with 3/4-16 O-ring ports (8 AN)
Features:
Designed for GM LS Gen III and IV engines equipped with GM LS3/L92 cylinder heads
Provides
best performance for forced induction (supercharged or turbocharged)
engine applications with peak power at 7000-8000 rpm, depending on the
application
Dual-injector, separate-passage, high-volume fuel rails with mounting hardware, dual-fuel capable, 8 AN o-ring ports
Low height to aid the packaging of a plenum mounted air-to-water intercooler in a top-feed configuration
Available with both as-cast satin and black power-coat finishes
High
volume fuel rails for eight and sixteen injector configurations.

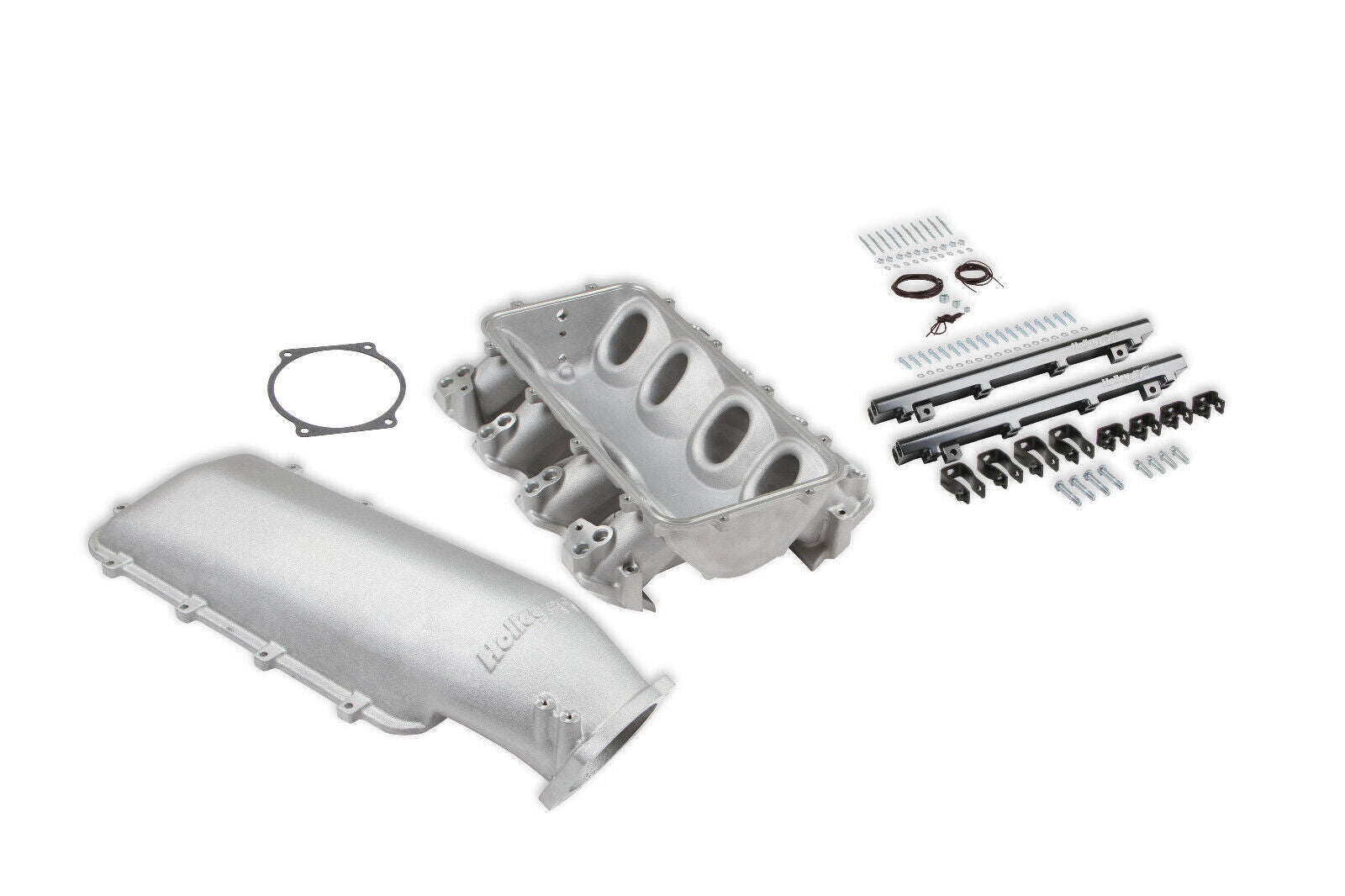

Mounting hardware included with3/4-16 O-ring ports (8 AN)and mounting
hardware included with 3/4-16 O-ring ports (8 AN)
