Holley

Holley 12-1500 VR1 Series Brushless Fuel Pump W/Controller 170 GPH 130 PSI

$1,448.95 USD

Sale Sold out

Product variants

Quantity

Holley Part Number: 12-1500

UPC: 090127731154

Fuel Pump Type: Electric external

Fuel Pump Voltage: 12 V

Flow Rate: 170 gph/644 lph

Fuel Pressure (psi): 130 psi

Fuel Pressure Regulator Included: No

Sending Unit Included: No

Inlet Size: -10 AN O-ring

Inlet Quantity: One

Inlet Attachment: Female threads

Outlet Size: -10 AN O-ring

Outlet Quantity: One

Outlet Attachment: Female threads

Gasket Included: No

Wiring Harness Included: Yes

Mounting Bracket Included: No

Mounting Hardware Included: No

Pulley Included: No

Quantity: Sold as a kit.

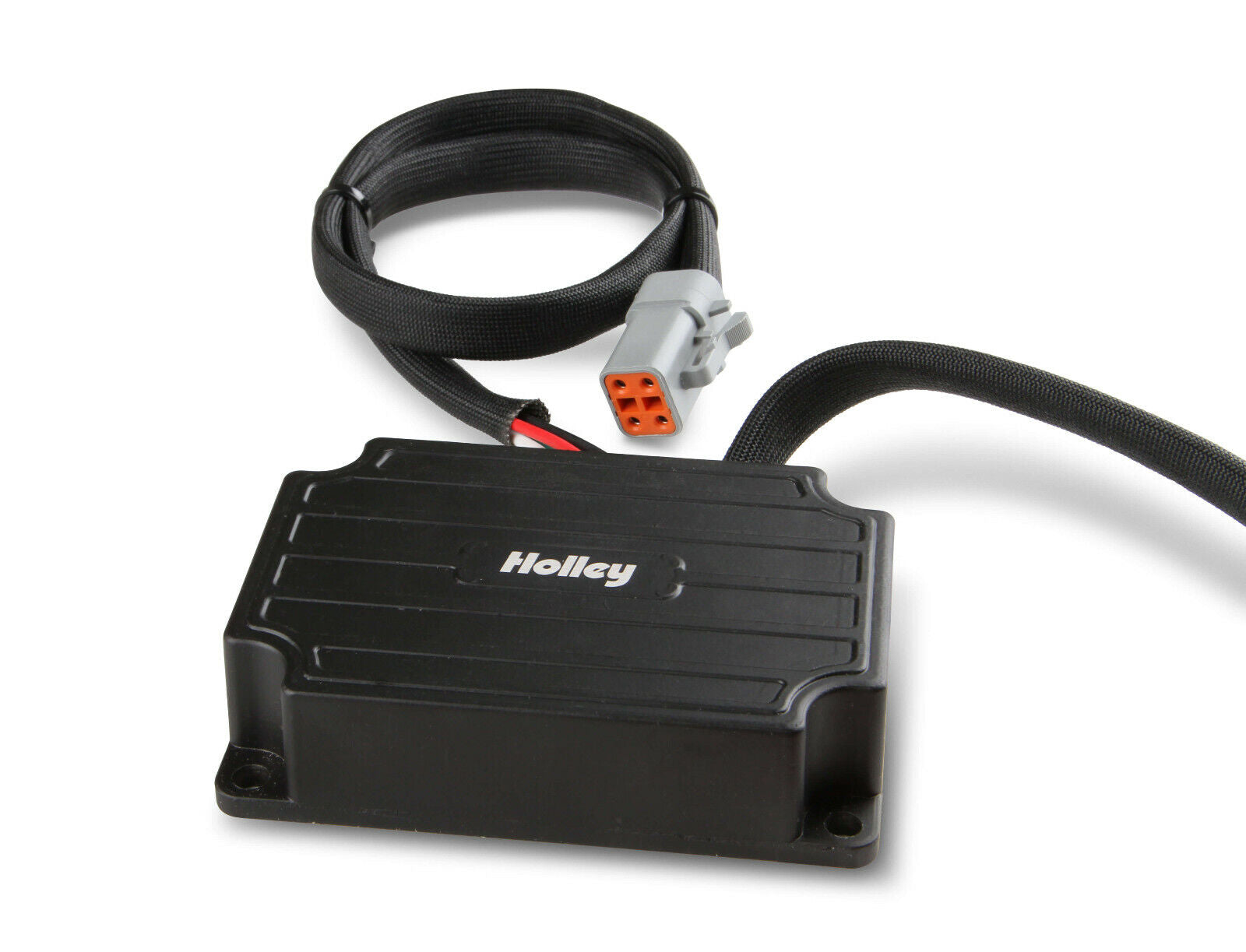

Notes: Bypass-style fuel pressure regulator and return line are required. Includes a 2-step controller for pump speed control.

Please contact before ordering if you are not 100% sure of fitment

Holley VR Series billet fuel pumps feature brushless pump technology and a twin-screw rotor design. These in-line fuel pumps are capable of high pressures and flows while maintaining a low amperage draw and quiet performance. They are designed to work on high-boosted race cars, endurance cars, and daily drivers. VR pumps will work with gasoline, methanol, and E-85 (compatible for methanol and E85 for competitive drag race use only- when draining and flushing after each race event). The VR1 and VR2 models are capable of a consistent 130 psi, can be fully submerged in the fuel cell or chassis mounted, and feature race-worthy billet aluminum construction for lasting durability and looks. Whether running 300 or 3000 hp, Holley has a brushless pump for you.

Features include:

* Pumps can be run in one of two different speeds
* Low speed control for low fuel consumption requirements
* Full speed for high fuel consumption requirements
* Proven for 18.5 V compatibility
* Provide sufficient fuel flow for forced induction applications
* Built for continuous duty if required
* Dual-pump models are designed for endurance racing—use both or one can be a reserve pump
* AN O-ring inlet/outlet
* High flow and high pressure with low amperage draw
* Maximum amp draw of 19 amps for VR1 and 38 amps for VR2 pumps
* Not for use on aircraft of any type

Note: These pumps are not designed to use standard conical seat-style unions in the inlets or outlets of the pumps. Use of this style fitting will block flow and WILL lead to poor performance and pump failure. The ONLY correct fitting to use is a contoured port fitting with an O-ring seal such as part # EAR-AT985010ERL.
