Edelbrock

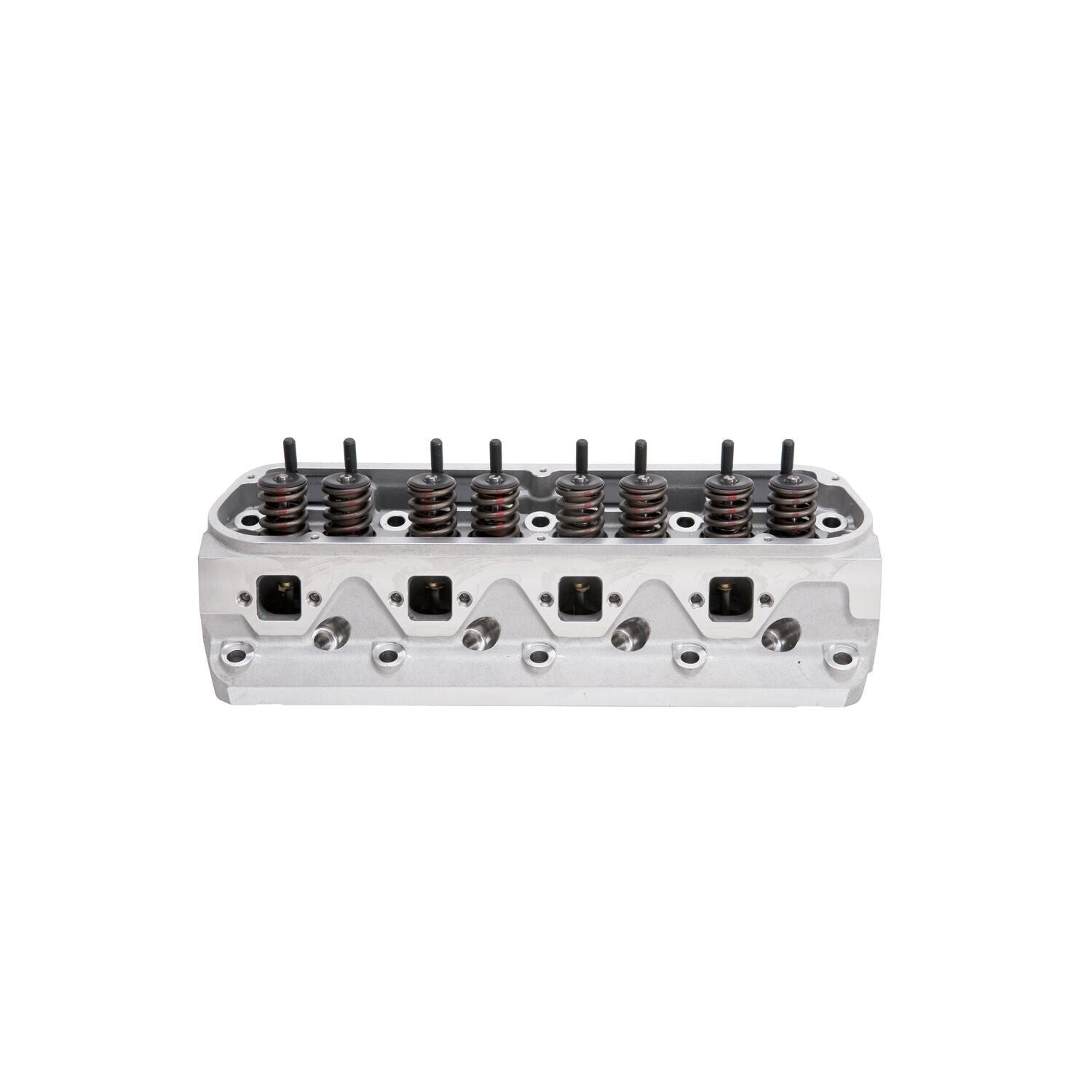

Edelbrock 60229 RPM Small-Block Ford 1.90" Cylinder Head Hydraulic Flat Tappet

Edelbrock 60229 RPM Small-Block Ford 1.90" Cylinder Head Hydraulic Flat Tappet

$973.50 USD
$973.50 USD
Sale Sold out
Edelbrock Part Number: 60229

Made is the USA!

Fits 289-351W Small-Block Ford with Hydraulic Flat Tappet Camshaft

Please contact us before purchasing , if you are not 100% sure of fitment

UPC:085347602292

Combustion Chamber Volume (cc):60

Intake Runner Volume (cc):170cc

Exhaust Runner Volume (cc):60cc

Cylinder Head Style:Assembled

Cylinder Head Material:Aluminum

Intake Port Shape:Rectangular

Intake Valve Diameter (in.):1.900 in.

Cylinder Head Color:Natural

CNC-Machined Combustion Chamber:No

CNC-Machined Intake Runner:No

CNC-Machined Exhaust Runner:No

Intake Port Location:Standard

Exhaust Port Shape:Rectangular

Exhaust Port Location:Standard

Intake Valves Included:Yes

Exhaust Valves Included:Yes

Exhaust Valve Diameter (in.):1.600 in.

Valve Springs Included:Yes

Maximum Valve Lift (in.):0.575 in.

Camshaft Style:Hydraulic flat tappet

Outside Diameter of Outer Spring (in.):1.460 in.

Damper Spring Included:Yes

Number of Springs Per Valve:Single

Retainers Included:Yes

Retainer Material:Steel

Locks Included:Yes

Lock Style:7 degree

Valve Stem Seals Included:Yes

Valve Stem Seal Style:Positive stop

Rocker Arm Studs Included:Yes

Rocker Arm Nut Thread Size:3/8 in.-24

Rocker Arms Included:No

Rocker Arm Nuts Included:No

Guideplates Included:Yes

Guideplate Pushrod Size:5/16 in.

Valve Cover Mounting Style:Perimeter bolt

Accessory Bolt Holes Drilled:Yes

Intake Valve Angle:20

Valve Guides Included:Yes

Valve Guide Material:Manganese bronze

Valve Seats Machined:Yes

Valve Seat Machine Style:3-angle

Valve Seat Material:Powdered metal

Steam Holes Drilled:No

Oiling Style:Through pushrod

Machined for O-Ring:No

Heat Crossover:No

Quantity:Sold individually.

Notes:For use with hydraulic flat tappet applications.

Edelbrock Performer RPM Cylinder Heads

Edelbrock Performer RPM aluminum cylinder heads feature threaded inserts in the rocker studs and exhaust manifold bolt holes for superior strength and durability. They also include hardened seats, bronze valve guides, and fully machined valve cover rails for a more consistent gasket seal. These heads offer improved power throughout the RPM range for greater throttle response and top-end horsepower. Countless options are available; order the model recommended for your vehicle and engine application.
